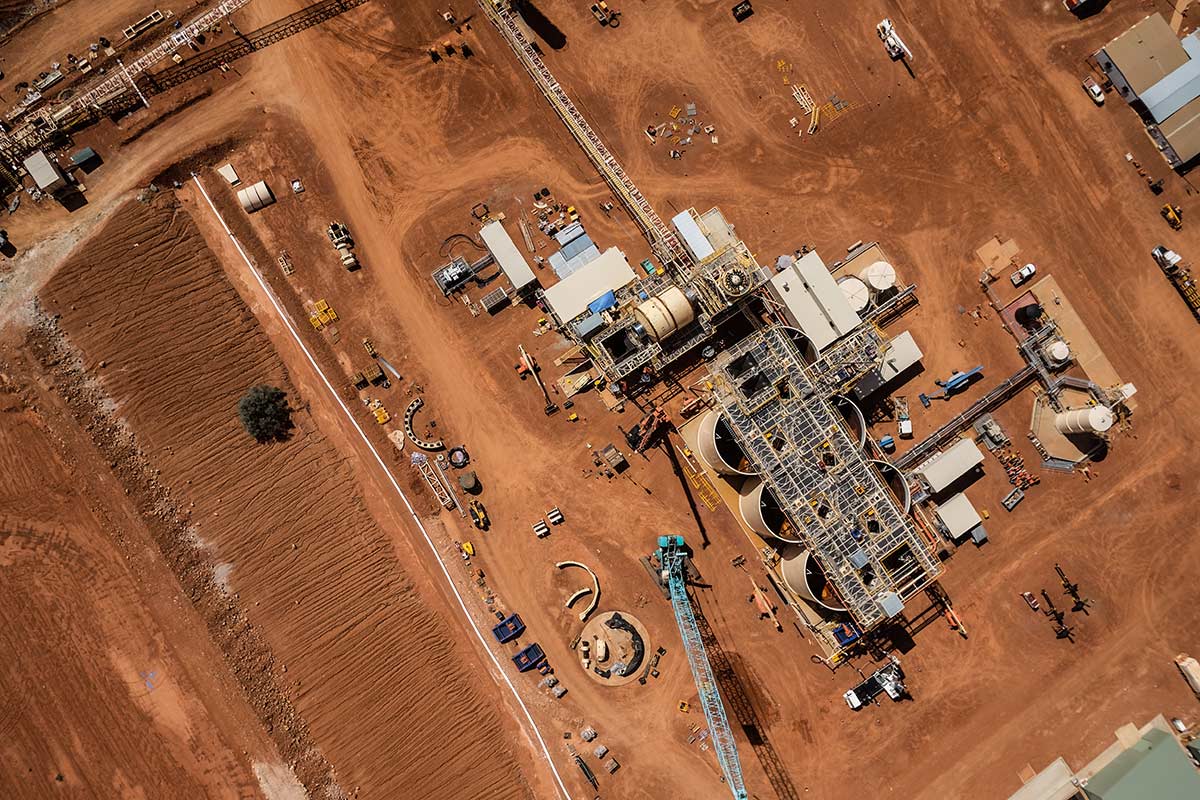

Dalgaranga Gold Mine

Process Plant

Project Execution Period 2017 – 2018

Project Overview

On the 6 August 2012 Gascoyne acquired an 80% interest in the advanced Dalgaranga gold project and surrounding exploration tenements from private tenement holders. The Dalgaranga project is located approximately 70km by road NW of Mt Magnet in the Murchison gold mining region of Western Australia and covers the majority of the Dalgaranga greenstone belt.

of Work

  • Provide competent engineering surveyor to oversee the SMP installations
  • Specialist sub mm Sag Mill installation
  • Complete all primary control establishment to be used for the duration of the construction period
  • All clearing permit drafting and set out for the client
  • Set out for trenching and services
  • Auditing Pre-pour check on 360m³ mill slab foundation
  • Verticality checks on critical items
  • Head and Tail pulley alignments
  • Set out of all services
  • As Built survey of all services
  • Drafting for handover


  • The job was carried out incident free
  • Scope was delivered on time and on budget

We continue to use Culhig Surveying for our critical component alignments and installations, no matter how complex the task, they have offered us a solution

- Matt Gordon, Construction Manager - GR Engineering Services
